Rewrite – Redirect URL

Rewriting URLs can be really useful if you need to point your new build to a specific environment i.e. point Prod build at non-Prod env. At a previous company I used this feature to redirect traffic from our Android Test build to our Prod environment.


This tutorial will show you how to use the Rewrite feature to redirect traffic from one website to another. In this example we will redirect users from the NY Times website to BBC News website.

You can also achieve a similar result with the Map Remote feature.

Prerequisites

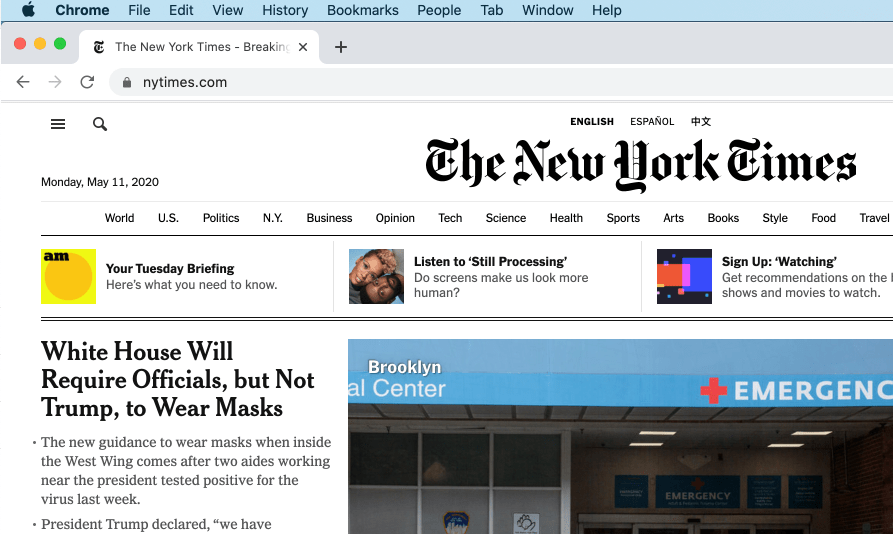

Go to the NY Times website

Open Chrome and go to https://www.nytimes.com/

Enable SSL Proxying

Return to Charles. Right click the NY Times request and click the “Enable SSL Proxying” option

The Request(s) you want to modify must be decrypted before you can use the Rewrite feature with it

Reload the page on Chrome

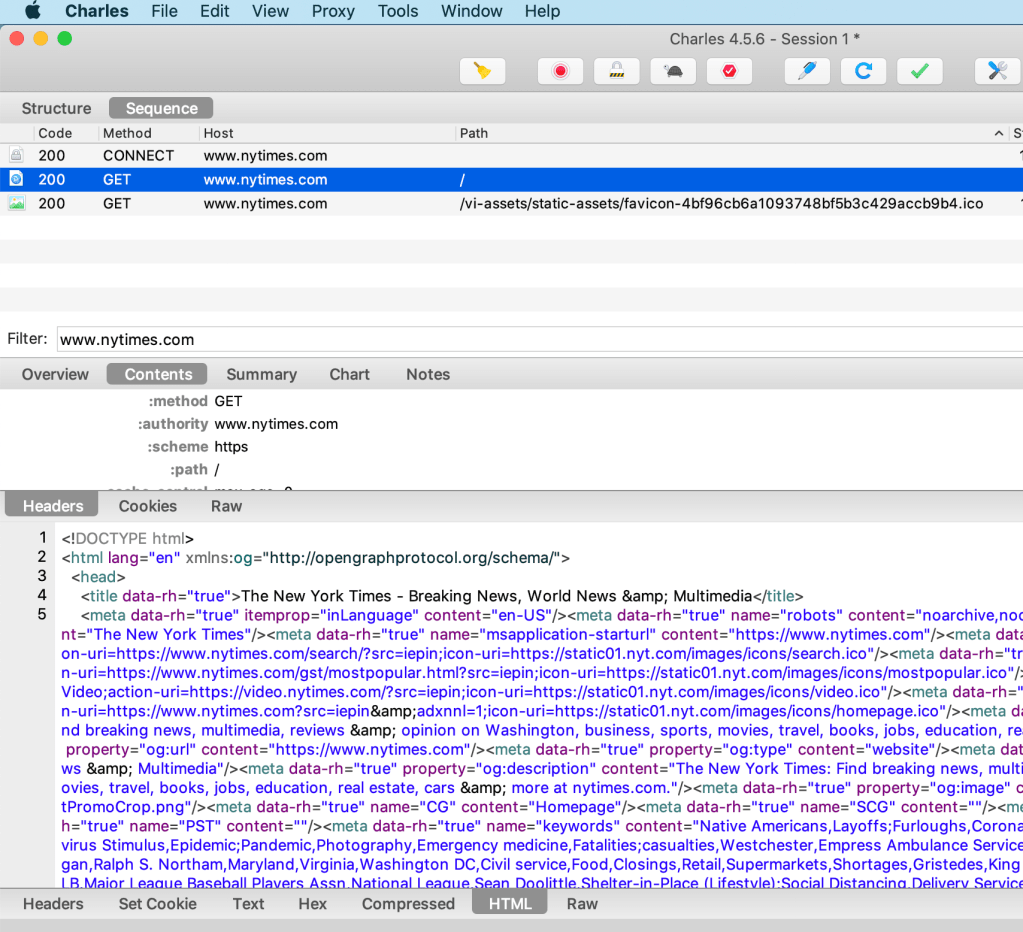

Return to Charles. You should now see traffic for http://www.nytimes.com in plain text

Open Rewrite screen

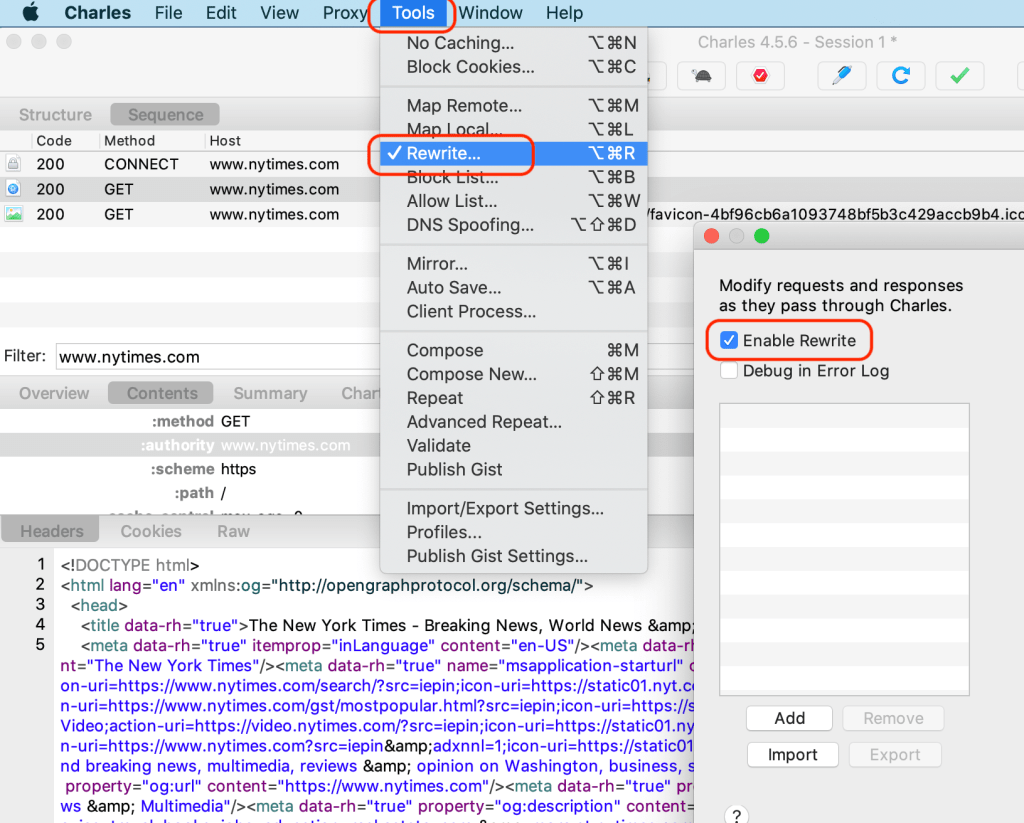

Tools -> Rewrite -> on the Rewrite Settings screen, tick the “Enable Rewrite” checkbox

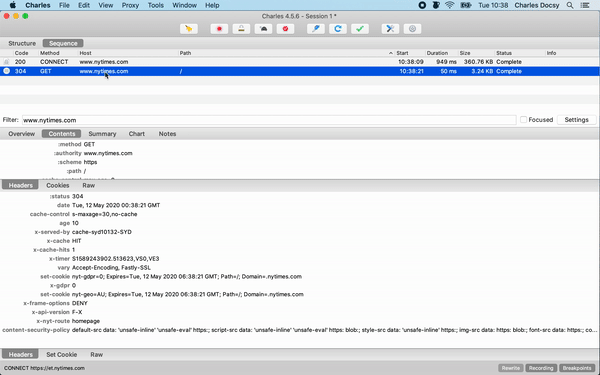

Configure a Rewrite Location

Add -> Click Add (from the ‘Location’ section) -> Paste https://www.nytimes.com into the “Host” field -> press the “tab” on your keyboard (this will auto populate most of the fields) -> set the “Port” to 443

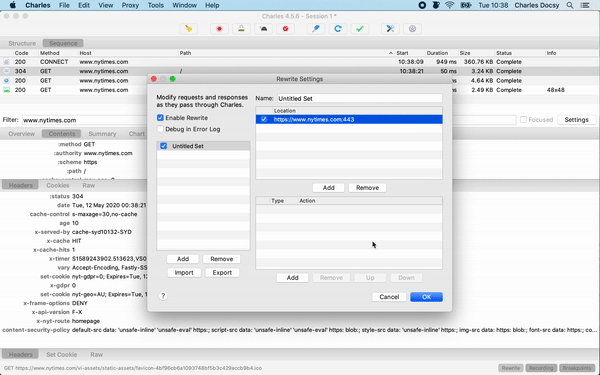

Setup the Rewrite Rule

Click Add (the centre bottom Add button) to open the Rewrite Rule screen. Configure as follows:

  • Select “URL” from the “Type” dropdown
  • Paste https://www.nytimes.com into the “Value” textfield of the Match section
  • Paste https://www.bbc.com/news into the “Value” textfield of the Match section
  • Click OK to save the Rewrite Rule
  • Click OK to close the Rewrite Settings screen

Reload NYTimes page in Chrome

You should now be redirected to the BBC News site instead
