Android devices and Charles

This tutorial will show you how to configure Charles and your device so you can view your app’s network traffic in plain text.


NOTE: Since Android Nougat (7.1), Google have blocked you from viewing/intercepting network traffic from Play Store apps.

NOTE: To proceed with this tutorial, you will need to be able to build your own Android app. Make sure to include a network security config file in the app’s repo so Charles can decrypt its network traffic. See more details here.

Still having issues? See common Android problems

Prerequisites

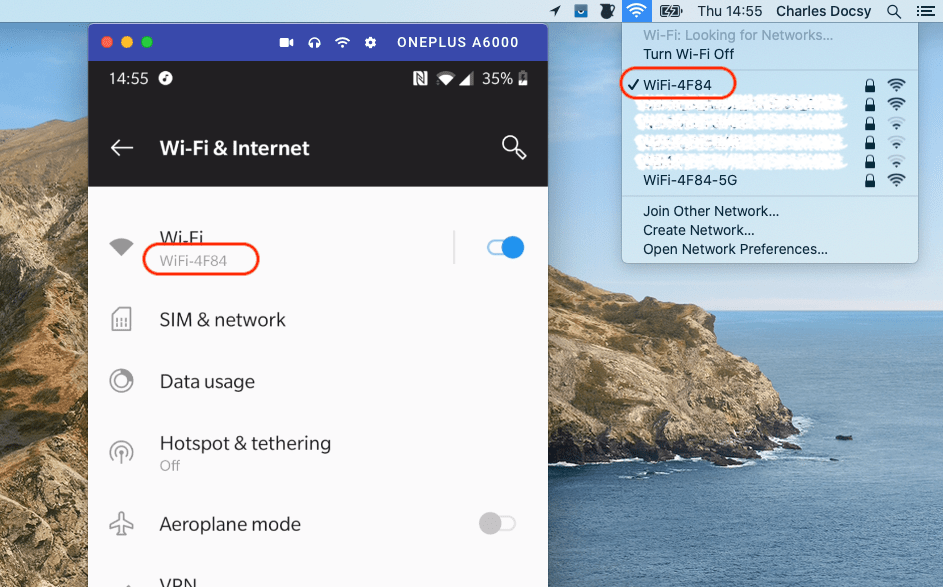

Check Wi-fi networks

Make sure your Mac and Android device are on the same Wi-Fi network

Find your Mac’s local IP address

Open Charles -> Help -> Local IP address.

Make note of the IP address as you will need to enter it into your device later

Navigate to device’s Wi-Fi proxy screen

Settings -> Wi-fi -> long press the connected Wi-Fi network to bring up the menu -> Modify -> Advanced options -> select “Manual” from the proxy drop down

NOTE: there are slight navigation differences between OS versions in how to get to your Wifi proxy settings but they should be fairly similar to these screenshots

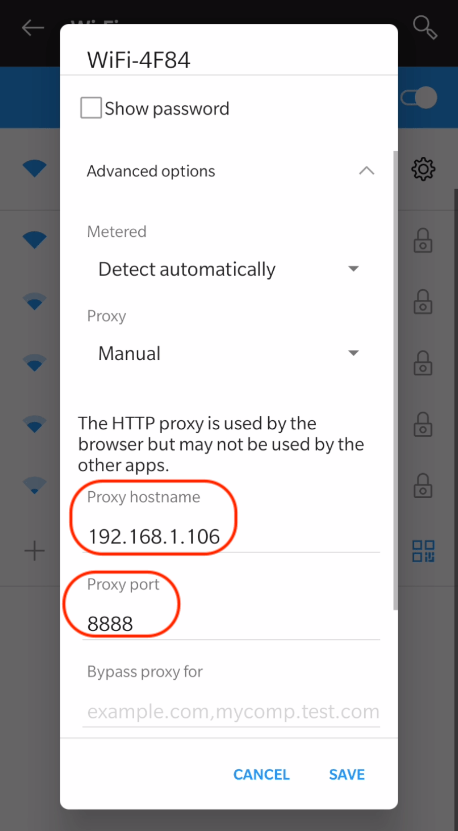

Configure device’s proxy settings

This step will proxy all your device’s internet traffic through your laptop

  • Proxy hostname: this is your Mac’s local IP address
  • Proxy Port: 8888

Accept incoming network traffic from your device

On your device, open Chrome and go to www.google.com

Return to your Mac. You should now see a prompt from Charles. Click “Allow”

Encrypted traffic from the device should now appear in Charles

Download Root certificate for device

Return to the device, open Chrome and go to chls.pro/ssl.

Tap “Download”

Install Root certificate

Navigate to the Downloads folder on your device and find the Root certificate. Tap to install

Android will now prompt you to enter pin, password or fingerprint before installing the Root certificate

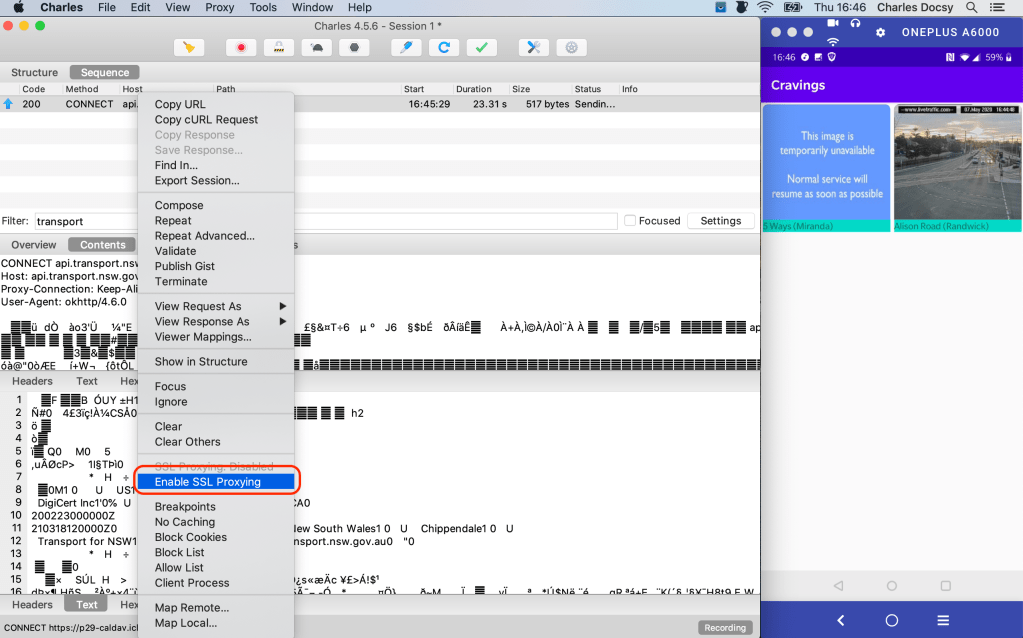

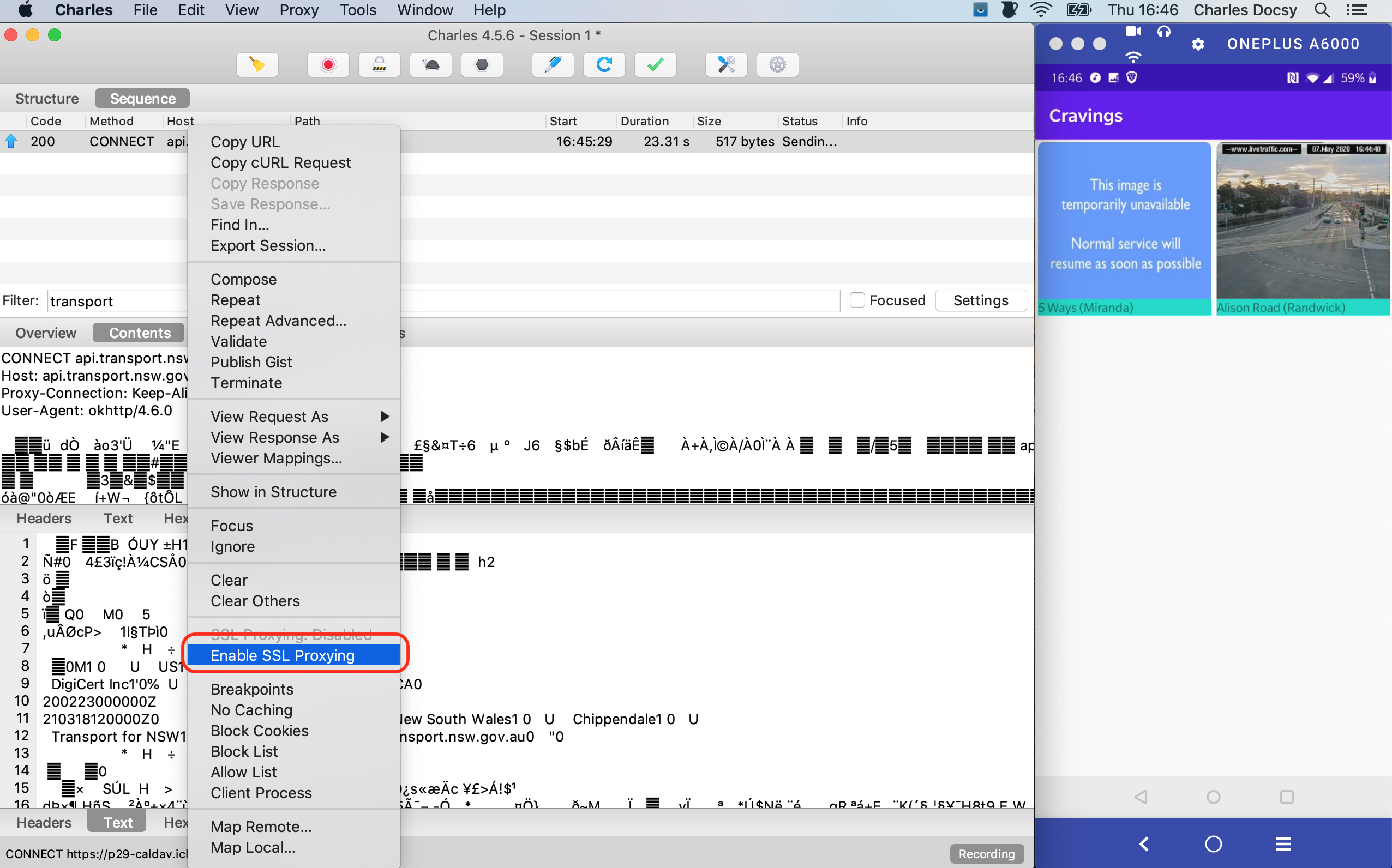

Enable SSL proxying to view traffic in plain text

Return to Charles, right click the network request you are interested in and click the “Enable SSL Proxying” option

FYI, I am using an Android app a friend created to demonstrate decrypting Android app traffic

NOTE: As mentioned at the start of the article, you need the ability to build your own Android app to view decrypted traffic. This step will not work with an app downloaded from the Play Store

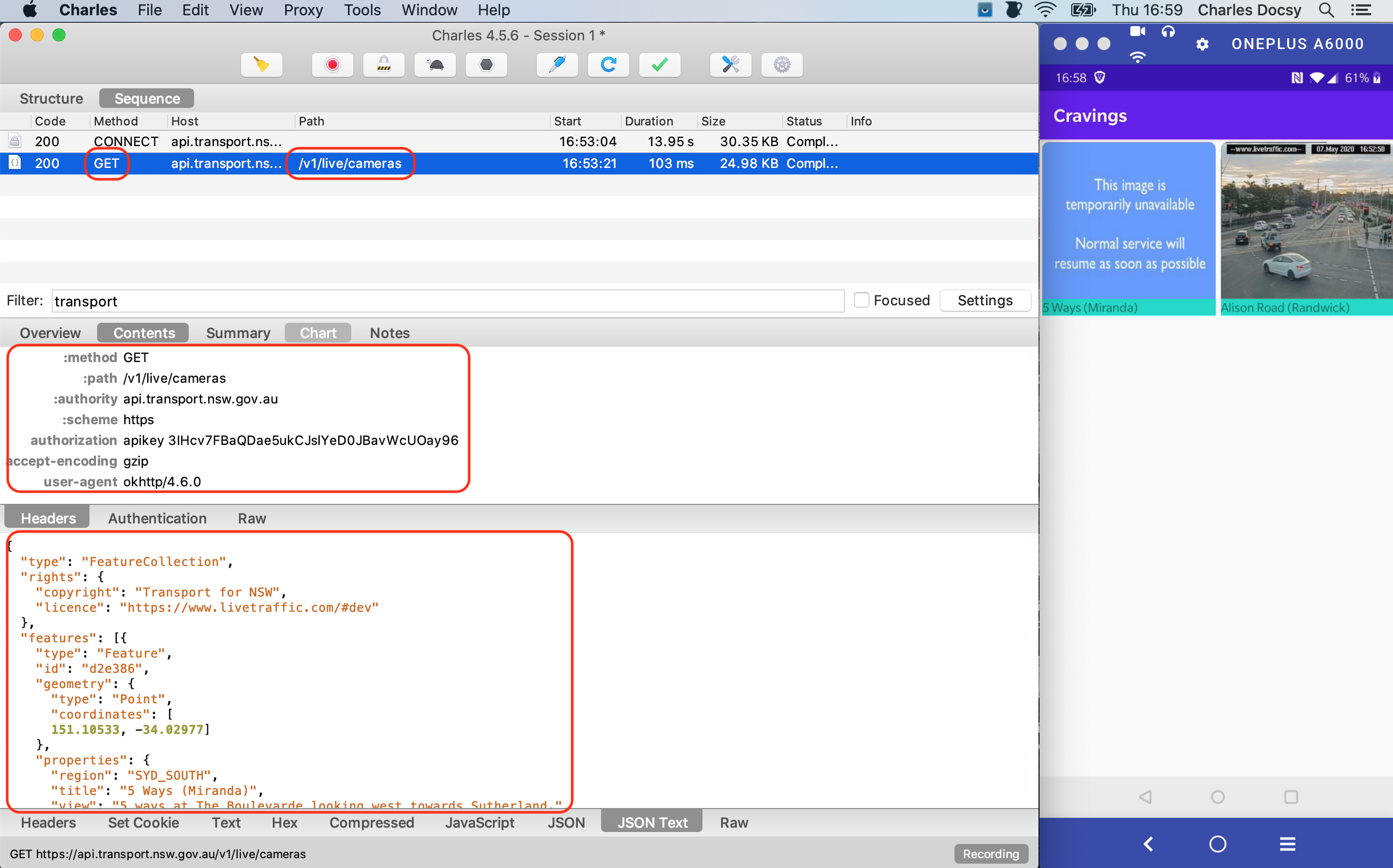

Kill and Reopen app

Kill and reopen the app. You should now see the network request details in plain text
